Overview

ADVANTAGE

◆Excellent product discharge performance with negligible product hold-up due to the conical bottom,
◆Close agitator to wall /bottom clearances and a unique agitator design.
◆The agitator permits uniform mixing of the entire product mass, without the formation of lumps or balls. The slow rotation of the agitator minimizes the shear forces applied to the product, thus limiting mechanical and thermal product degradation, maintaining the products original crystal structure.
◆The surface area for heat transfer is maximized for optimum performance and cycle times.
◆In compliance with cGMP and FDA guidelines, also in aseptic /steam sterilizable versions:
◆Agitator supported by the top head, with the seal in contact with the vapors only.
◆Entirely welded agitator design, without any bolts, with all edges rounded for good cleanability.
◆Excellent cleanability using CIP Systems, with simple validation process.

FEATURES

Design Code	GB/ASME/PED/AD2000 etc.
Product volume	135-14000 liters
Operating temperature	-10 to 151°C (15 to 300°F) or per requirements
Operating pressure	-1 to + 6 bar (g) (FV to 90 psig) or per requirements
Product wetted material	Stainless steels,Duplex stainless, Nickel based alloys such as Hastelloy C22/C276, Titanium, etc.,
Sealing materials	PTFE gaskets, O-Rings in FFKM or FEP encapsulated
Area classification	GB/ATEX/UL/GOST
Heated areas	All product wetted components, dust collector, including agitator shaft and blades
Accessories	Dust filter with automatic backcleaning, sampling valve,CIP system, sightglass with lamp,vacuum system with condenser, heating and cooling unit etc.
Controls	Control cabinet, HMI,MCC, interface for DCS, can realize computer verification.
Documents	DQ,IQ,OQ,PQ operate manual,DQ,IQ,OQ,PQ

SELECTION FORM

Model	Diameter (mm)	Filter area (m2)	Full volume (m3)	Equipment width (mm)	Total height of equipment (mm)	Motor power (kw)	Equipment net weight (T)
JTNB-T550	550	0.4	0.135	750	1850	According to the nature of the material, choose between 3-55KW	0.7
JTNB-T700	700	0.7	0.32	1100	2500		1
JTNB-T1000	1000	1.4	0.87	1280	2850		2.3
JTNB-T1200	1200	2.1	1.5	1630	3500		2.7
JTNB-T1400	1400	3	2.5	1850	4150		3.5
JTNB-T1600	1600	3.8	3	1900	4200		4.3
JTNB-T1800	1800	4.8	5	2300	4800		5.7
JTNB-T2000	2000	6.1	6.2	2500	5800		8.4
JTNB-T2200	2200	7.3	8.5	2700	6300		10
JTNB-T2400	2400	8.8	10.8	3000	6800		13.6
JTNB-T2600	2600	10.2	14	3200	7200		17

Note: Equipment of different specifications can be designed according to the special needs of users.

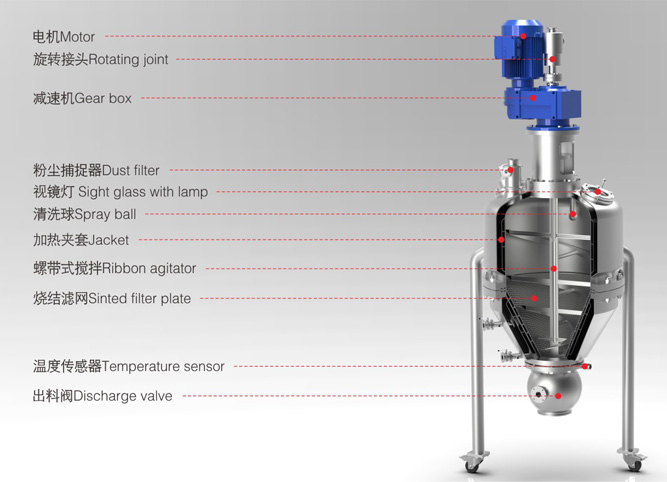

Conical Bottom Agitated Filter
