Tube Filtration

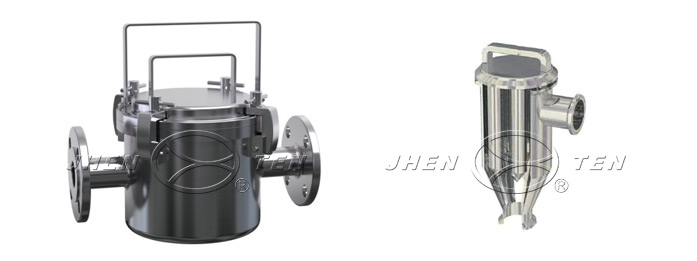

Magnetic Fluid Filter Housing

Magnetic Fluid Filter Housing

Model: JTGCX

Brand: JHENTEN

Fluid Pipe De-Ironing Separator

Detail Description

JTGCX Magnetic Fluid Filter Housing is applied to the fluid, semifluid and other different viscous fluid materials, remove the iron impurities and other ferromagnetic particles. To keep the material clean and protect the downstream production equipment at the same time.

JTGCX Magnetic Fluid Filter Housing using multichannel polishing processing to ensure the interface surface roughness Ra≤0.4um,compliance with GMP/FDA requirement . All of the surface is mirror polished.


Feature
Barrel's internal and external surface using mirror polish, interface surface roughness Ra≤0.4um,compliance with GMP/FDA requirement .
Using Flange, quick-open, eyebolt plate or quick release clamp can easy to install, take out and clean magnetic component.
Reasonable structure design can ensure the best de-ferrous effect at the same time not impede the flow of the material.


Application

Used in food and beverage, metal processing, pharmaceutical, ceramics, paper, cosmetics, fine chemical industry, etc. To protect main equipment from the destruction of the iron particles


Surface Finish

Finish Type

Mechanical polishing, electrolyticpolishing, sand blasting, pickling

Polishing precision

Inner surface Ra≤0.6μm ,
Outside surface Ra≤0.8μm.


Operating Conditions

Max Operating Pressure

0.6MPa, 1.0MPa

Max Operating Temp.

150℃


Material

Filter shell

304, 316L

O-ring

EPDM, PTFE, Viton, Silicone


Connection

Shell connection

Tri-clamp(0.6MPa),
Flange(1.0MPa)

In-outlet N1, N2

Flange, Tri-clamp, Thread


Structure


JTGCX  A series JTGCX  B series


JTGCX  C
series JTGCX  D series JTGCX  E series


Dimension Parameters

Diameter

Qty.of magnet

In-outlet

Magneticbar

Diameter

Length

Φ50

1

1”/1.5”

Φ20

6”/8”/10”

Φ114

4, 5

1”/1.5”/2”/2.5”

Φ159

6, 7

1.5”/2”/2.5”/3”

Φ190

9

2”/2.5”/3”/4”

The diameter of In-outlet under 3” using quick-open, 3” and 4” usingflange. it can customize according to customer's requirements. Dimension anapproximate value, for reference only.


Selection Table


[Series number]

[No. of magnet]

[Magnet model]

[Shell material]

[In-outlet Connections]

[O-ring]

JTGCX

A

9R

26

4

F

S


A=Aseries

1R=1pc

206, 208, 210
Example:206, “2” means diameter Φ20mm, “06” means magnetic bar thelength of 6”

4=304

F=flange

E=EPDM


B=Bseries

4R=4pcs/5pcs

6=316L

K=quick-installed

P=PTFE


C=Cseries

7R=6pcs/7pcs


L=screwthread

V=Viton


D=Dseries

9R=9pcs



S=Silicone


E=Eseries
