Crystallization tank

Crystallizing Tank

Crystallizing Tank

Model:JTRJJ

Brand: JHENTEN

The Crystallizing Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009) , strictly meet to GMP certificate requirements.

Detail Description

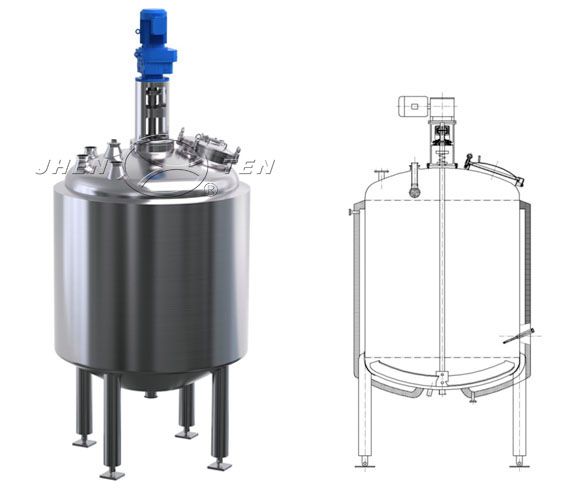

Full Jacketed Crystallizing Tank


Crystallizing tank is mixed materials after reaction, the jacket demand sharp cooling crystallization of chilled water or refrigerant water equipment, the most important is the size of sandwich, the structure of agitator and material form, vats and high precision polishing, to meet the requirements within the tank cleaning no dead corner and process conditions of use.


Tank Optional Configuration

The Crystallizing Tank can select 0.2μm hydrophobic sterile air filter, thermometer(Digital display or Dial type), 2 sight glasses, steam sterilization hole, sanitary manhole, liquid in-outlet, CIP rotating cleaning ball, liquidometer and Liquid level control system(Bearing module, non-contact ultrasonic, static pressure transmitting device) and so on, also can configure as customers’ requirement.


Application
? Applied for such as pharmaceutical, dairy products, food, chemical, beverage and other industrial materials, mixing temperature and freezing, product crystallization, and so on.


Feature
? Volume: 600L~20000L and multiple specification, also can design and manufacture according to customers’ requirement.
? Crystallization can choose curved blade paddle, can increase heat exchange area, increase in thermal efficiency, enhance the crystallization capacity, and material discharging is convenient.
? Crystallizing tank jacket can be bubbled into steam or cold media to make the material under optimum temperature, with high efficiency and convenient operation.
? Crystallizing tank installed 0.2 um hydrophobic ventilation filter, tank can withstand the high temperature steam sterilization disinfection, equipped with health pressure gauge.
? The sealing of agitating shaft adopts sanitary mechanical seal. The mixing motor can use Cycloidal reducer, gearmotor reducer. These items can be selected according to customers’ requirement. (Frequency control is widely used).


Design Parameter

DesignPressure -0.1MPa~1.0MPa
Design
temperature
According tocustomers’requirement(0℃~160℃)


Material

Liner 304、316L
Jacket 304
Insulation Rockwool (keep warm)
OrPU (cold insulation)
Feet 304


Connection

In-outlet Tri-clamp,Flange


Surface Finish

FinishType Mechanicalpolishing, electrolytic polishing, sand blasting, pickling
Polishingprecision Inner surface Ra≤0.3μm,
Outer surface Ra≤0.6μm


Normal Model And MainTechnical Parameters

Parameters Model JTRJJ—600 JTRJJ—1000 JTRJJ—2000 JTRJJ—3000 JTRJJ—4000 JTRJJ—5000
Effectivevolume:L 600 1000 2000 3000 4000 5000

Barrel

Diameter:mm Φ900 Φ1100 Φ1300 Φ1600 Φ1700 Φ1800
Height:mm 900 1000 1500 1500 1800 1800

Agitator

Power:kW 1.1 2.2 2.2 3 3 4
RPM:r/min 60 (The design canbe adjusted according to customer use condition)
JTRJJ—6000 JTRJJ—8000 JTRJJ—10000 JTRJJ—12000 JTRJJ—15000 JTRJJ—20000
6000 8000 10000 12000 15000 20000
Φ1900 Φ2000 Φ2200 Φ2400 Φ2600 Φ2800
2000 2200 2400 2500 2700 3000
4 5.5 7.5 7.5 11 11
60 (The design canbe adjusted according to customer use condition)
Theabove-mentioned data is the standard, for reference only.It can customizeaccording to customer's requirements.
