Evaporative concentrator
QN Series spherical concentrator

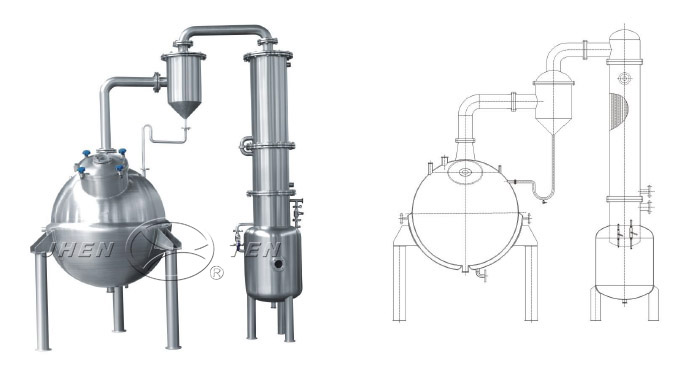

The spherical concentration tank, consisting of tank body, condenser, gas-liquid separator and liquid receiving barrel, is available to concentrate and distil the material liquid in such industries as pharmacy、food and chemistry and recycle the organic solvent.The adoption of reduced pressure concentration shortens the concentration time, avoiding the destruction to effective component inside the thermal sensitive material.
The contact part of the concentrator is made with the stainless steel, resistant to corrosion,high durable, meeting the standard of the GMP.
The spherical concentration tank, consisting of tank body, condenser, gas-liquid separator and liquid receiving barrel, is available to concentrate and distil the material liquid in such industries as pharmacy、food and chemistry and recycle the organic solvent.The adoption of reduced pressure concentration shortens the concentration time, avoiding the destruction to effective component inside the thermal sensitive material.
The contact part of the concentrator is made with the stainless steel, resistant to corrosion,high durable, meeting the standard of the GMP.
Technical parameters
| Model | QN-300 | QN-500 | QN-700 | QN-1000 | QN-1500 |
| Evaporation capacity（kg/h） | 70 | 120 | 145 | 195 | 230 |
| Preassure in jacket（Mpa） | 0.25 | ||||
| Vacuum degree（MPa） | 0.08 | ||||
| Heating area（㎡） | 1.3 | 1.6 | 2.7 | 3.1 | 3.3 |
| Condensation area（㎡） | 2.4 | 4 | 5 | 10 | 15 |
| Dimensions(mm) | 1900x1100x2300 | 2030x1200x2500 | 2100x1300x2600 | 2335x1520x2765 | 3000x1650x3700 |
| Equipment weight（kg） | 350 | 480 | 610 | 950 | 1150 |
