Emulsification tank

Emulsification Tank

Emulsification Tank

Model: JTRRG

Brand: JHENTEN

The JTRRG Emulsification Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009) , strictly meet to GMP certificate requirements.

Detail Description

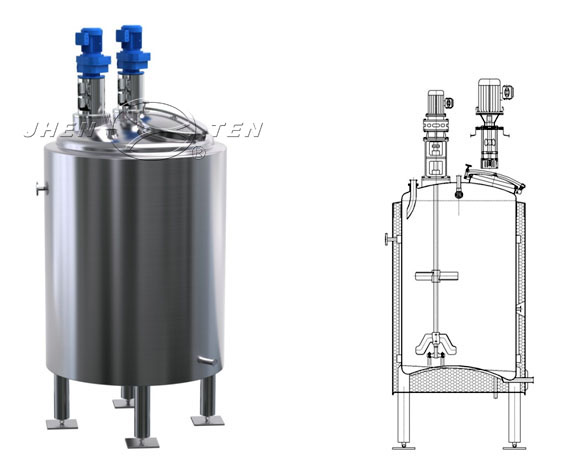

Mixing and emulsification double head type


Mixing and emulsification one head type         Emulsification tank


The Emulsification Tank adopts Vertical circular tanks, both of top and bottom are standard oval and torispherical head. Transition section in tank using circular arc transition, without dead corner, easy to clean. Heating mode with steam, electric heating, heat conduction oil, equipped with mechanical stirring according to customers’ requirement.


Tank Optional Configuration

The Crystallizing Tank can select 0.2μm hydrophobic sterile air filter, thermometer(Digital display or Dial type), 2 sight glasses, steam sterilization hole, sanitary manhole, liquid in-outlet, CIP rotating cleaning ball, liquidometer and Liquid level control system(Bearing module, non-contact ultrasonic, static pressure transmitting device) and so on, also can configure as customers’ requirement.



Application
? Suitable for cosmetic, medicine, food, chemical, dyeing, printing ink and other industrial production, especially for high matrix viscosity, solid material content higher material preparation emulsion will be more efficacy.


Feature
? Volume:600L~20000L and multiple specification, also can design and manufacture according to customers’ requirement.
? Jacket can pass steam (or hot water), can also pass the cooling water. Jacket has disk tubular, full jacketed and Maitreya plate. Jacketed outside covered with insulation, thermal insulation material for rock wool (warm) or PU (cold).
? The connection adopts Tri-clamp, the tanks’ inner use 304 or 316L. The inner surface mirror polishing Ra≤0.28μm~0.6μm, outer surface can polishing, wire drawing and sandblasting according to customers’ requirement.
? Agitation adopts top mechanical agitation. Stirring methods(Push type, screw, anchor, etc) can be selected.
? The sealing of agitating shaft and emulsification shaft adopt sanitary mechanical seal. The mixing motor can use Cycloidal reducer, stepless speed reducer. These items can be selected according to customers’ requirement. (Frequency control is widely used)Emulsion motor adopts frequency control of motor speed reducer


Design Parameter

Designpressure

-0.1MPa~0.6MPa
Designtemperature According tothe customers' requirements(0℃~160℃)


Material

Inner tank 304、316L
Jacket 304
Insulationlayer Rockwool ( keep warm ) or PU ( keep cool )
Feet 304


Surface Finish

Finishtype Mechanical polishing, electrolyticpolishing,
Sand blasting , pickling
Polishingprecision Inner surface Ra≤0.3μm,
Outer surface Ra≤0.6μm


Connection

In-outlet Tri-clamp, Flange


Normal Model And MainTechnical Parameters

Parameters Model JTRRG—600 JTRRG—1000 JTRRG—2000 JTRRG—3000 JTRRG—4000 JTRRG—5000
Effectivevolume:L 600 1000 2000 3000 4000 5000

Barrel

Diameter:mm Φ900 Φ1100 Φ1300 Φ1600 Φ1700 Φ1800
Height:mm 900 1000 1500 1500 1800 1800

Emulsification

Motorpower :KW 4 7.5 7.5 11 11 15
EmulsificationRPM 4P(The design canbe adjusted according to customer usage)

Mixing

Motorpower:KW 1.1 1.5 2.2 2.2 3 4
MixingRPM:r/min 22(The design canbe adjusted according to customer usage)
JTRRG—6000 JTRRG—8000 JTRRG—10000 JTRRG—12000 JTRRG—15000 JTRRG—20000
6000 8000 10000 12000 15000 20000
Φ1900 Φ2000 Φ2200 Φ2400 Φ2600 Φ2800
2000 2200 2400 2500 2700 3000
18.5 22 30 37 45 55
4P(The design canbe adjusted according to customer usage)
4 5.5 5.5 7.5 7.5 9.2
22(The design canbe adjusted according to customer usage)
Theabove-mentioned data is the standard mixing and emulsification double headtype emulsification tank,, for reference only. it can customize according tocustomer's requirements.
